2i iProbe Plus Scanning Probe

DATASHEET
The iProbe Plus provides secure data storage, reporting, and traceability in the palm of your hand. The iProbe Plus is the most advanced, innovative and user-friendly scanning probe available.

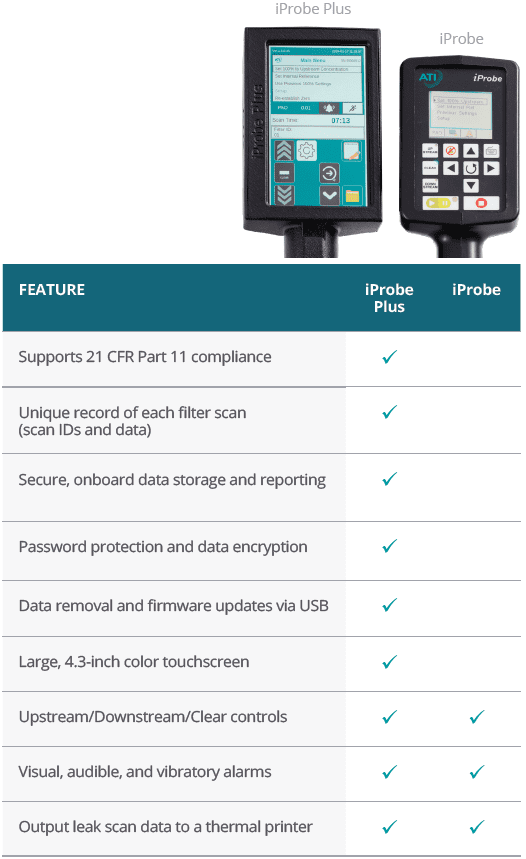

Key Features

  • Filter scan report traceability
  • On-board data storage
  • Easy data transfer via USB
  • Large, 4.3-inch color touchscreen
  • Compatible with existing 2i photometers, no firmware update required (“plug and play”)*
  • Optional password protection

Key Benefits

  • Supports 21 CFR Part 11 compliance
  • Enhances data integrity and quality control
  • Eliminates the need to connect to a computer or printer for real-time data output
  • Improves efficiency and saves time

* 2i main unit must be at firmware rev 4.6.1 or higher

Click the video to learn more.



Quality and Robustness

Standard Test Requirements
IEC 60068-2-27 Drop Dropped 10 times at 1 meter
IEC 60068-2-6 Vibration 1 hr at 10Hz, 100Hz, and 200Hz
IEC 60068-2-14 Temperature Tested at -20°C and +70°C
IEC 60068-2-27 Thermal Shock Unit cycled between -20°C and +70°C
Standards & Compliance
CE
UKCA
RoHS 3
IEC/EN 61326-1:2013 (EMC)



The iProbe Plus creates a unique record of each filter scanned. Each record includes key identifiers (IDs) and important scan data for quality control and leak scan traceability.

Scan Traceability IDs

The iProbe Plus offers filter leak scan traceability by requiring critical ID information to be entered.

  • Job
  • Room
  • Filter
  • Technician

User Benefit: Enhances quality control by providing a detailed digital record of each filter scanned.



On-screen Information

  • Max % leakage
  • Effective scan time
  • Every alarm instance recorded
  • Pass/fail recorded for each scan

Security

  • Supports 21 CFR Part 11 compliance through encryption, password protection, and data protection. Filter leak data saved on the iProbe Plus cannot be altered.
  • Offers optional password protection of critical parameters such as date/time, deletion/removal, and encryption of the test data.
  • Reporting: Can save approx. 150,000 scans. Each saved leak scan is in a .CSV and .PDF file format for easy analysis. The files can be removed via a USB-A stick.
What can be password protected?

  • Saved scan data files can be encrypted when downloaded
  • Updating firmware
  • Downloading or erasing data from the iProbe Plus
  • Changing the date and time
  • Resetting the password to default (ATIIPROBEPLUS)

Upstream/Downstream/Clear Controls

The iProbe Plus allows the user to actuate the Upstream/Downstream/Clear valves through the touchscreen (patented feature). This improves efficiency and safety by eliminating the need to actuate the valves through the 2i base unit.

Additional User Conveniences

  • All firmware updates are installed via USB-A memory stick
  • Unique 10-second “rewind” button allows the exclusion of accidental alarm events (patent pending)
  • Ergonomic handle with finger grooves and thumb rest
  • Important information displayed on screen, such as Max % Leakage; Filter ID; Elapsed Scan Time

iProbe Plus Ergonomic Handle

10-Second Rewind



Clear Visual Cue When Leak Exceeds Alarm Threshold

Audible and Vibratory options are also available.

Install All Future Firmware Updates Through the USB Port

User Benefit: No need to send the unit to a service center.

Stores Up to 150,000 Scans!

User Benefit: Eliminates the need to be connected to a computer or printer for real-time data collection.

Data Output in .CSV and .PDF Files

User Benefit: The .CSV file contains a summary of all filters scanned with the same iProbe Plus Serial Number, Job ID, and Room ID. This allows for easy sorting of leak scan data.



Two .PDF Files for each Filter Scanned

  • Summary PDF file saves every failed alarm event
  • Detailed PDF file saves every scan result (pass or fail) including those erased by the 10-second rewind

User Benefit: Detailed scan data for specific filters scanned in a secure PDF format

Overview Video

How-to Videos (click links to view)
ATI released new firmware for the iProbe Plus Scanning Probe on May 21, 2024. The current firmware version is 1.0.0.46, shown on the top left corner of the Main Menu screen (Figure 1). If you are running version 1.0.0.45, we recommend updating to the latest version.

     iProbe Plus v46 Firmware – May 2024


Firmware Installation Instructions
The iProbe Plus probe allows the user to easily update firmware to the latest revision. The unit does NOT need to be sent to ATI or an ATI Authorized Service Center, it can be done locally.

To update the firmware, follow the steps below:

  1. Download the firmware (zip file) to a computer.
  2. Copy the firmware file (.pfu) to the root directory of a USB-A memory stick.
  3. Navigate to the Main Menu screen on the iProbe Plus (Figure 1).
  4. Insert the USB stick into the USB-A port of the iProbe Plus and follow the on-screen instructions (Figure 2).

Figure 1. Firmware version


Figure 2. Firmware updating screen

Contact ATI

410-363-9696

Contact Form

Outside the US?
Find your local distributor

Part Numbers & Ordering Information
Item Description Part Number
iProbe Plus 9300538
2i/iProbe Plus Ensemble (120V) 9300529
2i/iProbe Plus Ensemble (220V) 9300530
2i/iProbe Plus Ensemble with Printer (120V) 9300531
2i/iProbe Plus Ensemble with Printer (220V) 9300532
2iN/iProbe Plus Ensemble (120V) 9300533
2iN/iProbe Plus Ensemble (220V) 9300534
2iN/iProbe Plus Ensemble with Printer (120V) 9300535
2iN/iProbe Plus Ensemble with Printer (220V) 9300536
Screen Protector (9 pack) 9300537
